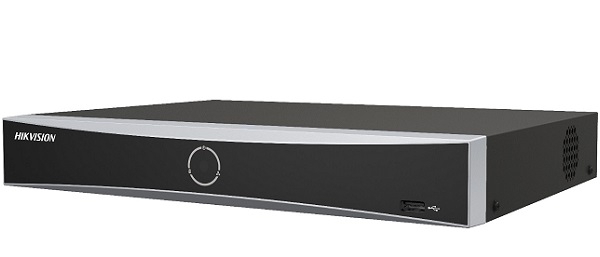

Đầu ghi hình camera IP 4 kênh HIKVISION DS-7604NXI-K1

Đầu ghi hình camera IP 4 kênh HIKVISION DS-7604NXI-K1

- Hỗ trợ 4 kênh camera IP.

- Chuẩn nén video: H.265+/H.265/H.264+/H.264.

- Ngõ ra HDMI: 1-ch, 4K (3840 × 2160)/30 Hz.

- Hỗ trợ 1 khe cắm ổ cứng lên đến 10TB.

- Phân tích hình ảnh người/ phương tiện chống báo giả.

- Human face capture: 1 kênh.

- Face picture comparison: 2 kênh (khi dùng camera face capture).

- Hỗ trợ tìm kiếm bằng khuôn mặt.

- Thư viện ảnh khuôn mặt: lên đến 16 thư viện với 20,000 ảnh (mỗi ảnh ≤ 4MB, tổng dung lượng ≤ 1 GB).

Thông số kỹ thuật

Model    DS-7604NXI-K1
Facial Recognition
Facial Detection and Analytics    Face picture comparison, human face capture, face picture search
Face Picture Library    Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4MB, total capacity ≤ 1 GB)
Facial Detection and Analytics Performance    1-ch human face capture
Face Picture Comparison    2-ch face picture comparison alarm
Motion Detection 2.0
Human/Vehicle Analysis    4-ch
Video and Audio
IP Video Input    4-ch
Incoming Bandwidth    40 Mbps
Outgoing Bandwidth    80 Mbps
HDMI Output    1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output    1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode    HDMI1/VGA simultaneous output
Audio Output    1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio    1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format    H.265/H.265+/H.264+/H.264
Recording Resolution    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback    4-ch
Decoding Capability    AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30fps)
AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30fps)
Stream Type    Video, Video & Audio
Audio Compression    G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection    128
Network Protocol    TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface    1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA    1 SATA interface
Capacity    Up to 10 TB capacity for each HDD
USB Interface    Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out    N/A (4/1 is optional)
General
Power Supply    12 VDC, 1.5 A
Consumption    ≤ 10 W (without HDD)
Working Temperature    -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity    10% to 90%
Dimension (W × D × H)    320 mm × 240 mm × 48 mm
Weight    ≤ 1 kg (without HDD)
